The project designs a new cafe on the site of 525 Atlantic Ave, Brooklyn, NY. The café's space is a place where people interact and build community. This adaptive reuse project tells a story of the existing site through design for people visiting. Using Revit, it explores and focuses on the method of creating construction drawings and details of the construction process. It helps to understand the actual process of the construction field and how design comes to life in real-world applications.
concept
Concept Collage
Material studies and atmospheric references that establish the café's design language—warmth, texture, and a sense of belonging within the existing neighborhood fabric.
plans
Floor Plan & Section
The plan organizes the café around a central counter, with seating zones that respond to the existing structural rhythm of the building.

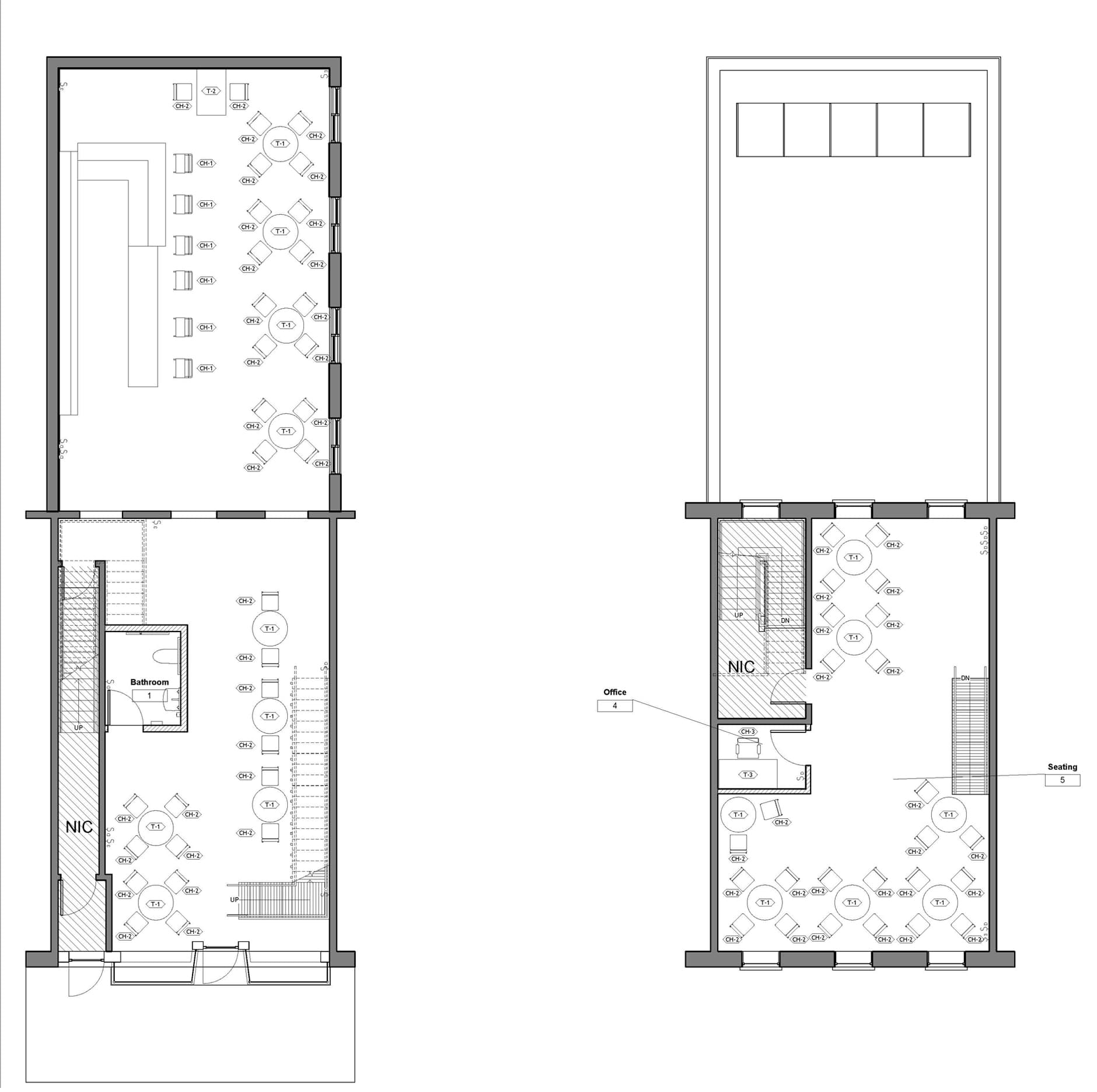

Floor Plan

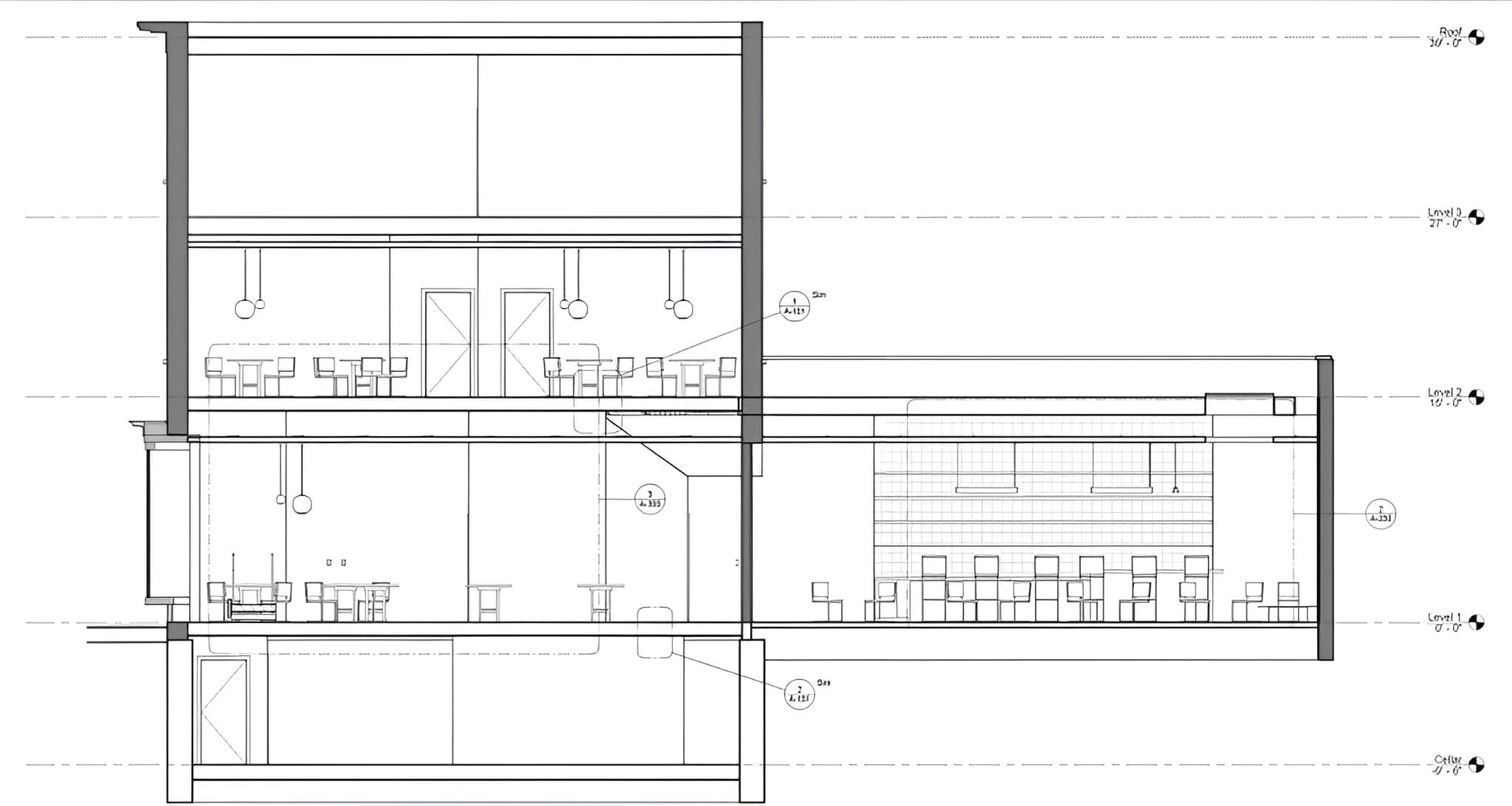

Interior Section
details
Shop Drawings
A detailed construction documentation set developed in Revit—translating design intent into the language of the construction field.

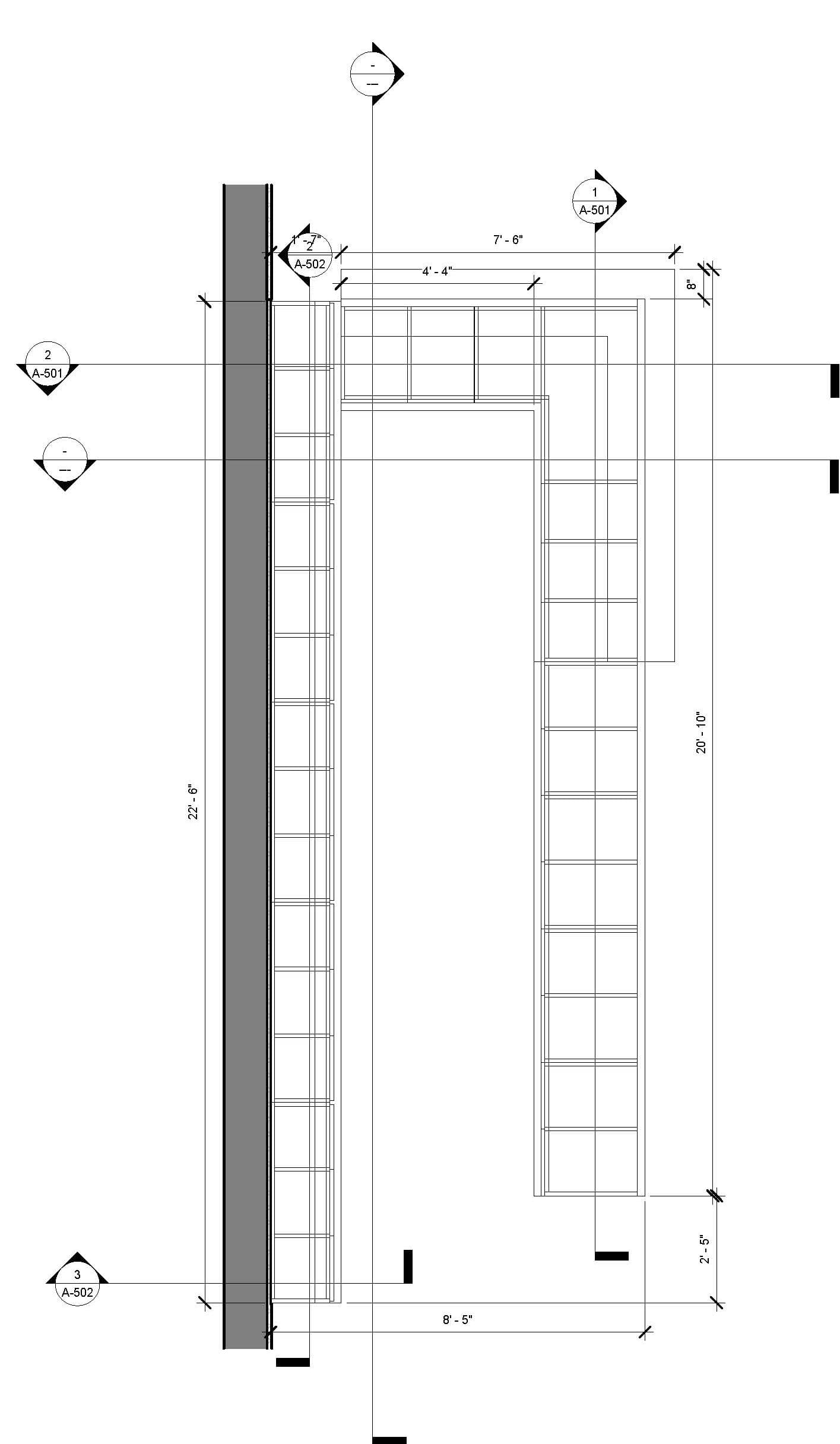

Bartable Plan

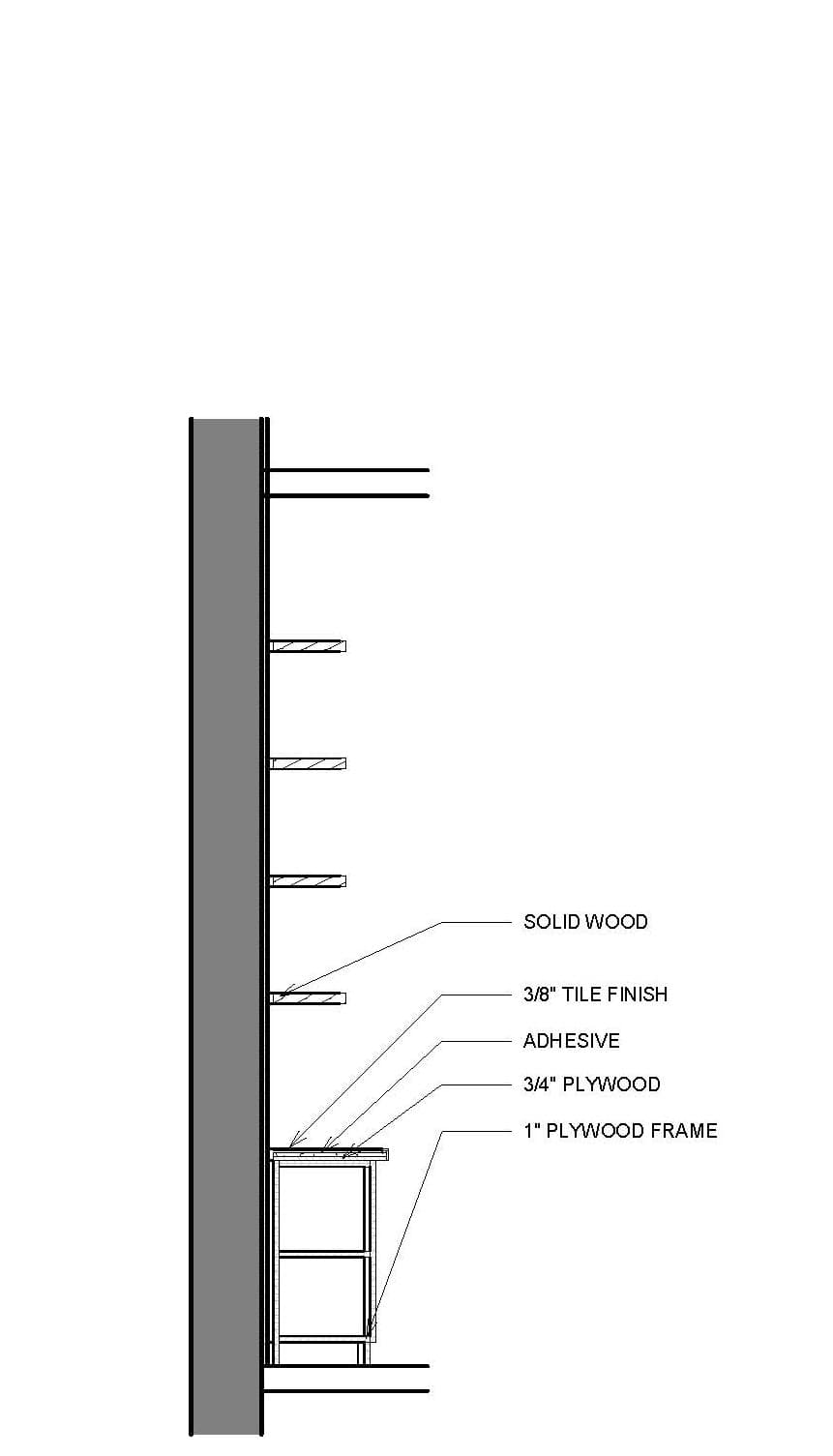

Back Bartable Transverse

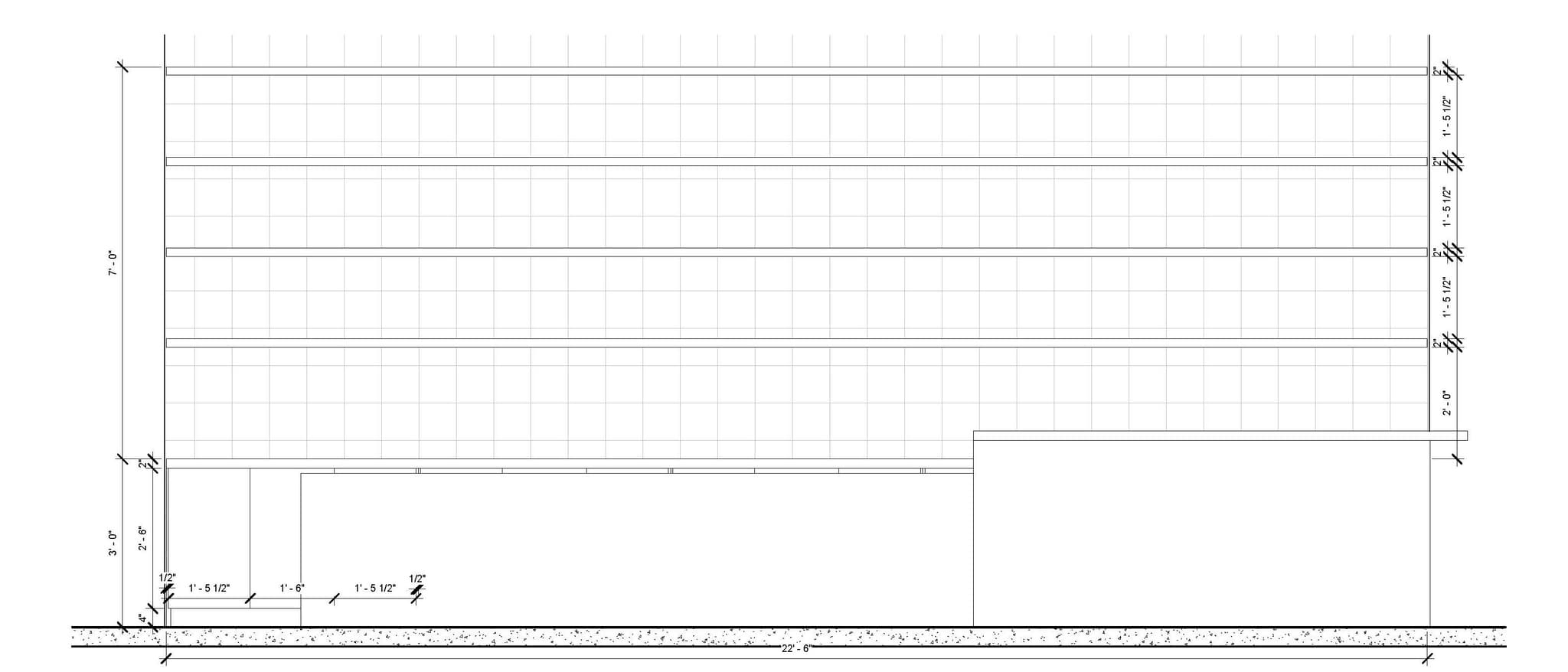

Bartable Elevation

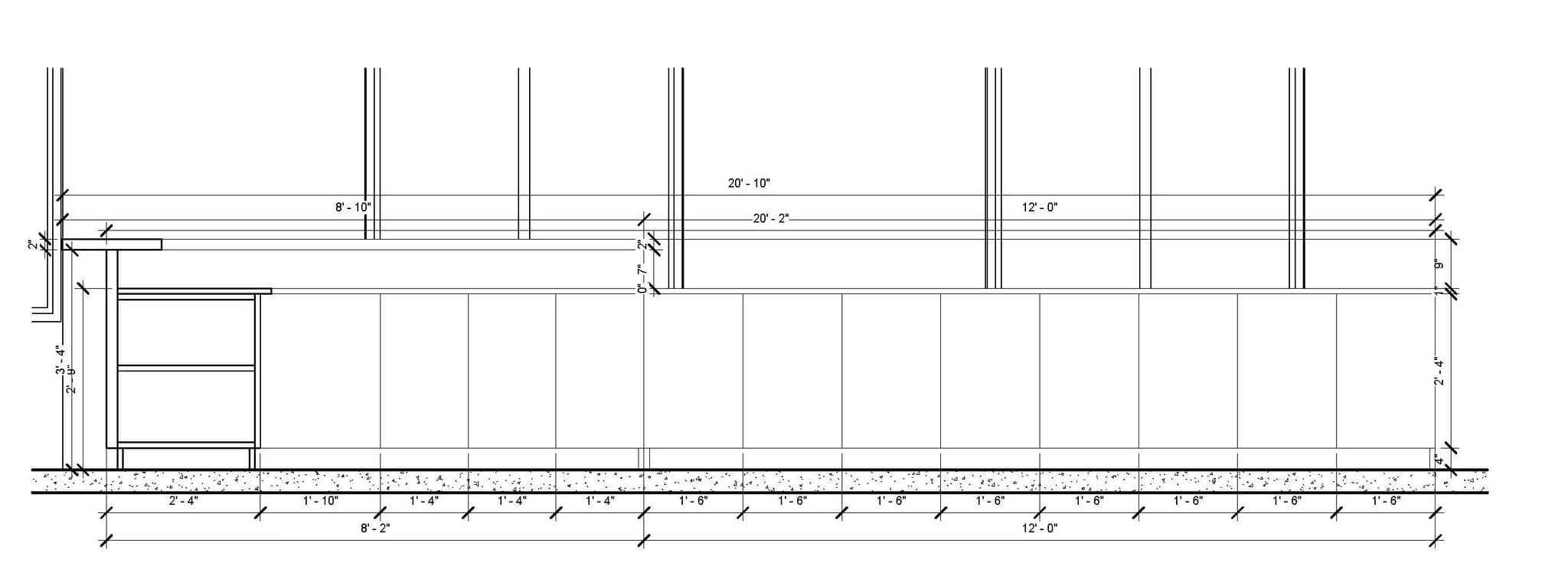

Bartable Section

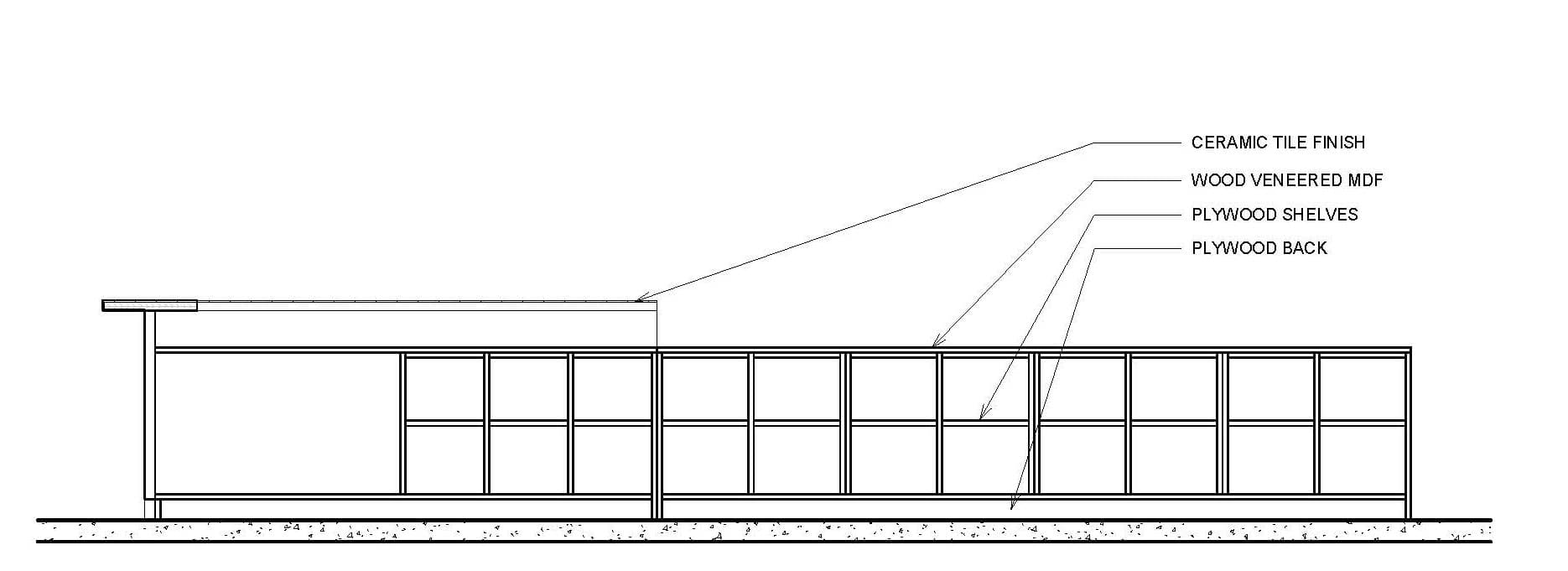

Front Bartable Longitudinal
details
Construction Details
Floor-to-ceiling details and millwork specifications that resolve the relationship between the existing building envelope and new interior elements.

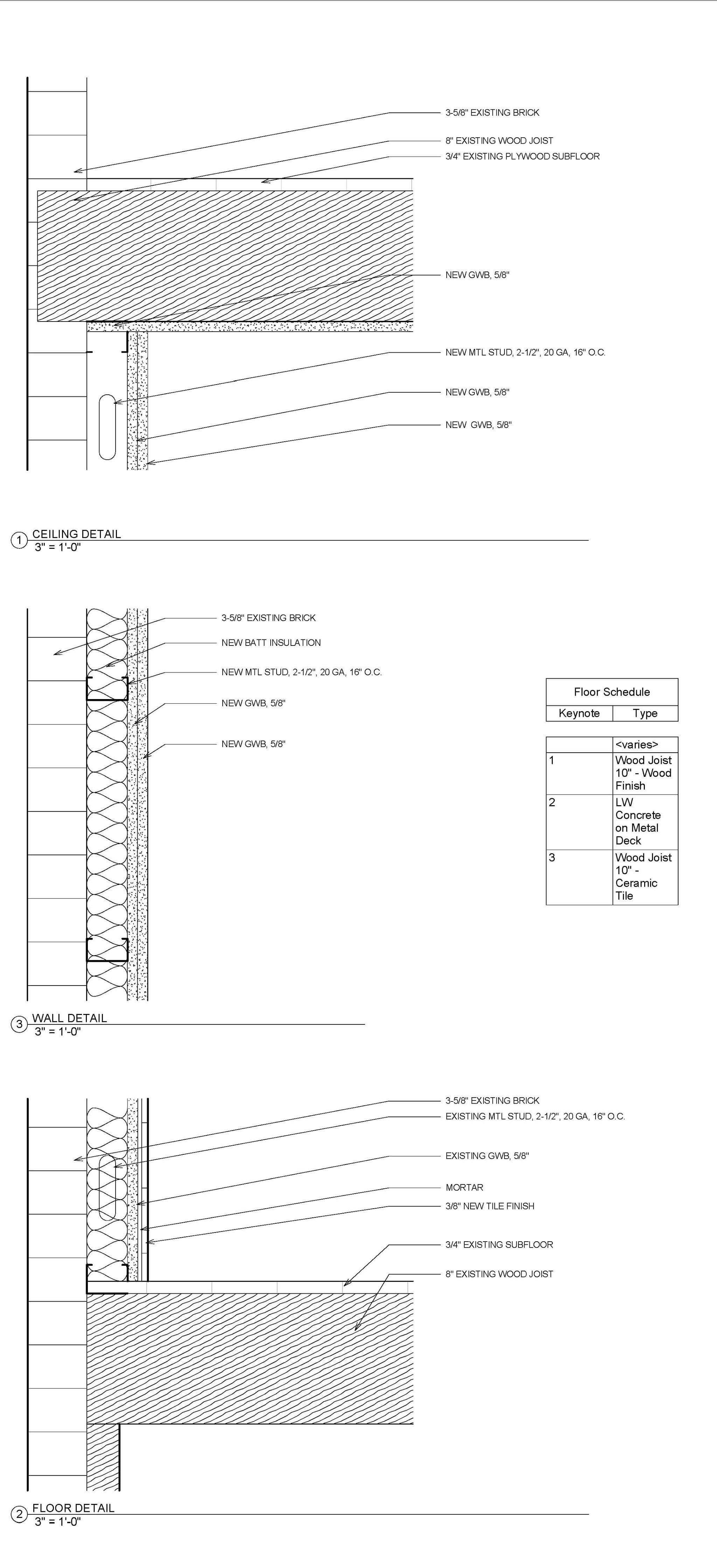

Floor to Ceiling Detail

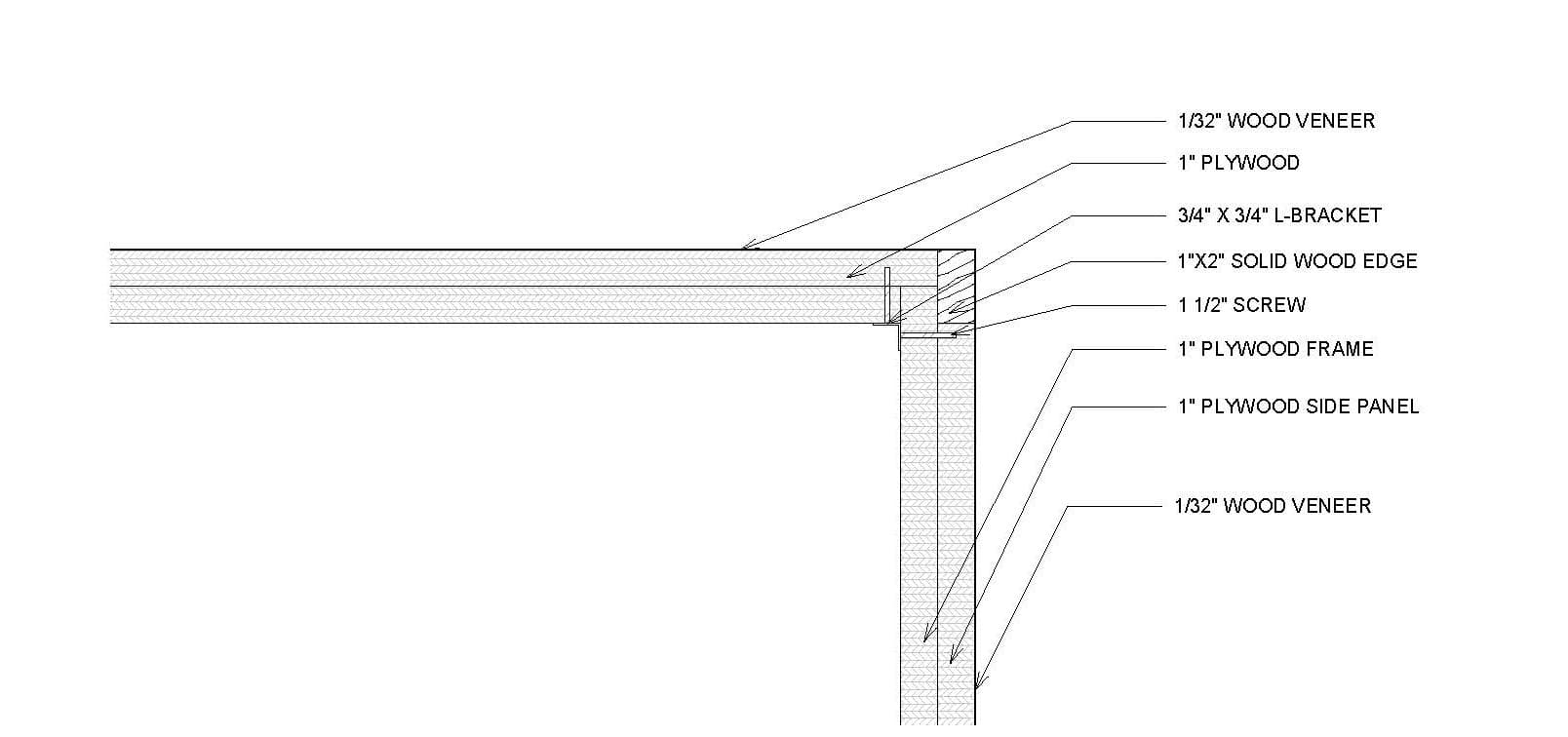

Front Bartable Detail

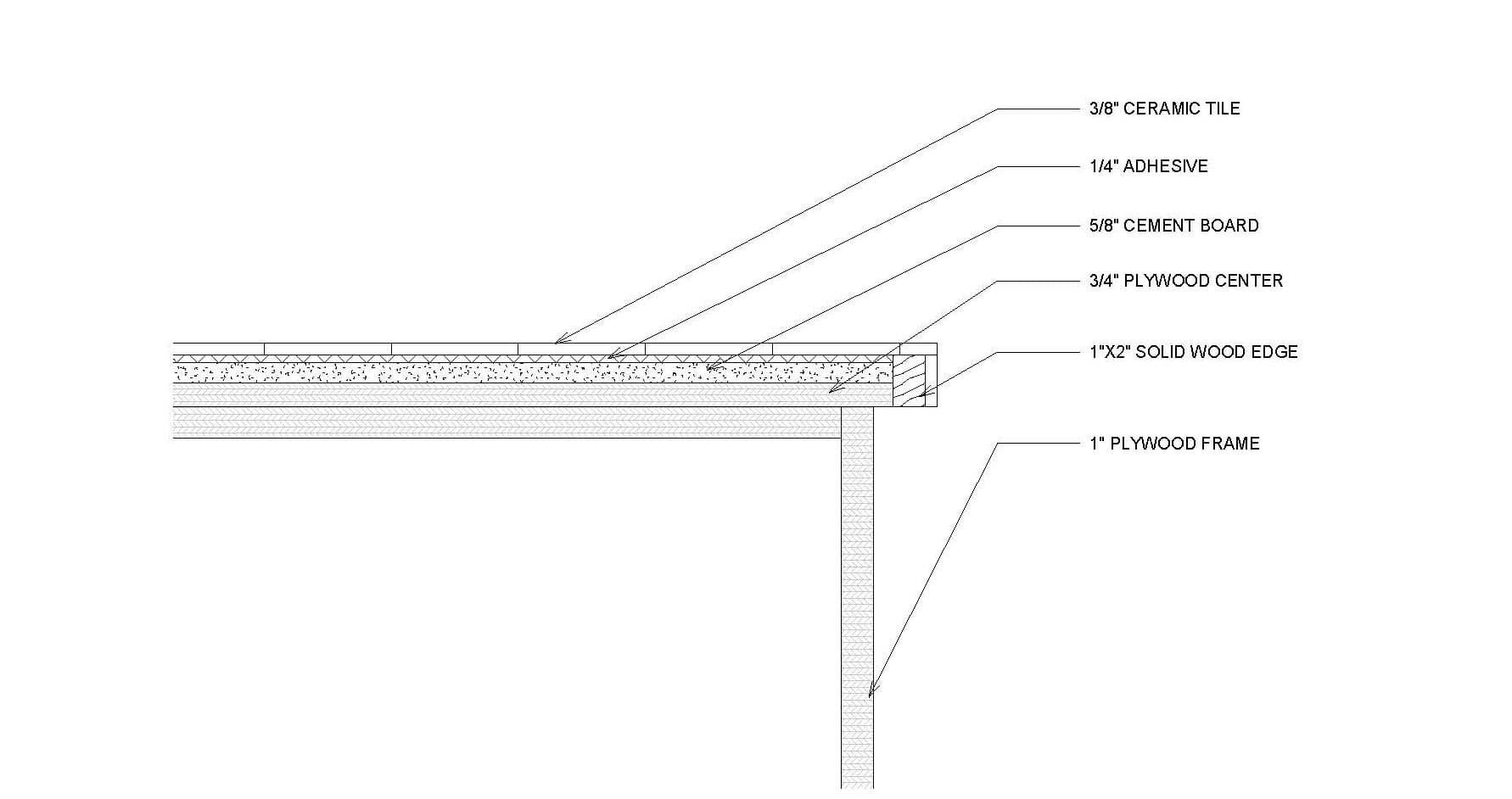

Back Bartable Detail
